FEATURE
1. For Carton Side Binding
2. There are some adjustment plate on table for convenience to staple.
|
MODEL |

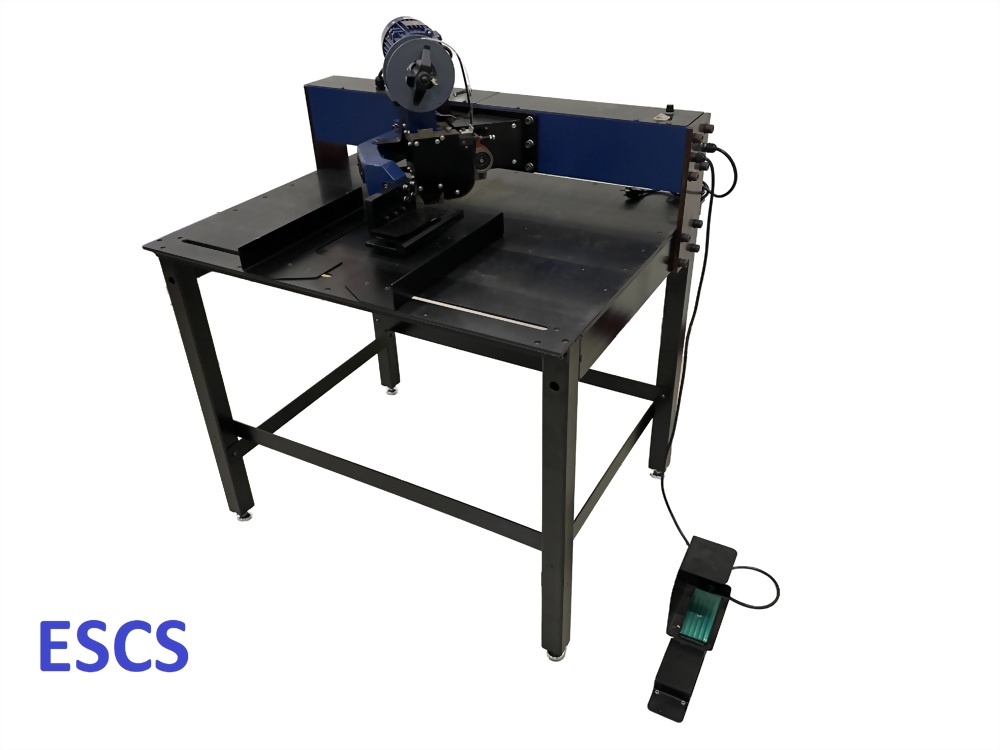

ESCS-100 |
|
|
VOLTAGE |
110V(single-phase) 1/4HP, 60HZ |
220V(single-phase) 1/4HP, 50HZ |
|
TABLE HEIGHT |
825mm |
|
|
CARDBOARD BOX SIZE |
Unilateral max 500mm, minimum 200mm |
|
|
CORRUGATED SPECIFICATIONS |
3 PLY & 5 PLY CORRUGATED BOX |
|
|
DIMENSION |
L 800 mm x W 1065 mm x H 1240 mm
|
|
|
NET WEIGHT |
160 KG |
|
|
WIRE SIZE |
FLAT WIRE 0.7 mm x 1.65 mm |
|
|
MAX, STITCHING SPEED |
278 per min. speed variable steplessly |
|
